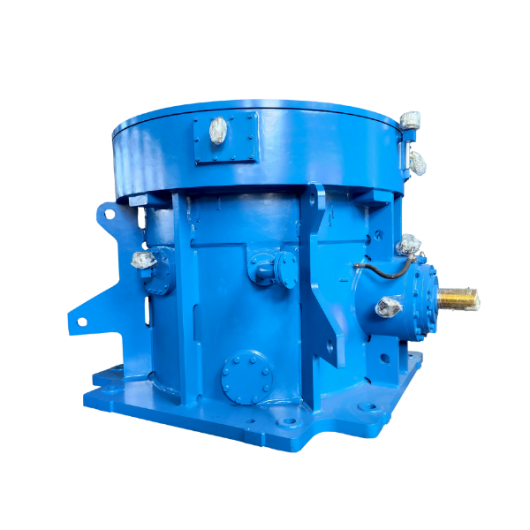

Vertical mills require very high power rating and availability. Gearbox is one of its key components, and its main function is to reduce the motor speed to the grinding speed suitable for the mill, and at the same time provide support for the grinding disk. Structural form:two-stage transmission (one-stage spiral bevel gear, one-stage planetary); three-stage transmission (one-stage spiral bevel gear, one-stage parallel, one-stage planetary); three-stage transmission (one-stage spiral bevel gear, two-stage planetary), designed according to user requirements.
Platformized and modularized design, short delivery time and reliable quality.
Rich experience in designing planetary structure reducer, taking targeted improvement measures according to special working conditions.
Finite element analysis (FEA) is used to optimize the structure of the box and planetary frame to improve the structural rigidity.
Optimize the lubrication method for smoother operation.
Design of hardened gears, high standard repair technology, heat treatment process, gear accuracy of 5-6 grade.
Optimized bearing configuration, improve the stability and reliability of operation.
Transmission ratio: ~
Rated power: ~ kW
Mills widely used in the building materials industry include raw meal mills, coal mills, pre-powder mills, cement mills, slag mills and gypsum fly ash, and coal mills and limestone mills are also used in the power and metallurgical industries. In addition, grinding systems for calcite, ceramic powder and other mining industries are also used.
